安科瑞霍尔传感器在印度某公司的应用

案例属性

  • 所属分类:工矿企业
  • 浏览次数:0
  • 发布日期:2021-09-15
  • 产品概述

摘要:霍尔电流传感器是依靠电磁特性检测电流的一种传感器,它通过测量霍尔电势可以间接测量出载流导体电流的大小,使电流的非接触测量成为可能。霍尔电流传感器主要包括开环式和闭环式两种,具有响应时间短、工作频率高、过载能力强、高隔离度等优点,适合测量各种频率及各种波形的复杂电量,被广泛应用于变频调速装置、逆变装置、UPS电源、光伏发电、通讯机房、数控机床、微机监测系统、电网监控系统和需要隔离检测电流的各个领域中。

  Abstract: Hall current sensor is a kind of sensor that relies on electromagnetic characteristics to detect current.It can indirectly measure the current of the current-carrying conductor by measuring the Hall electric potential, making non-contact measurement of current possible.Hall current sensors mainly include open-loop and closed-loop types, which have the advantages of short response time, high operating frequency, strong overload capacity, and high isolation.It is suitable for measuring complex electric quantity of various frequencies and various waveforms.It is widely used in variable frequency speed regulation devices, inverter devices, UPS power supplies, photovoltaic power generation, communication rooms, CNC machine tools, microcomputer monitoring systems, grid monitoring systems and various fields that require isolation and detection of current.

  关键词:霍尔电流传感器;应用

  Key words: Hall current sensor;application

  1.项目概述: Project Overview

  印度某公司业务涵盖泵、充电桩、太阳能等,该客户购买我司霍尔电流传感器主要用于PLC,本来客户需要0到20毫安输出,但是0毫安时不能区分是真的0毫安还是无信号输出,客户认为4到20毫安输出更加合理,所以采用我司4到20毫安输出的AHKC系列霍尔电流传感器。

  The Indian company's business covers pumps, charging piles, solar energy, etc. The Hall current sensor they purchased is mainly installed PLC.Originally, customers need 0-20 mA output, but at 0 mA, it is not possible to distinguish whether it is true 0 mA or no signal output.In the end, the customer thought that 4-20 mA output is more reasonable, so we use our AHKC series Hall current sensor with 4-20 mA output.

  2.AHKC系列霍尔传感器介绍 AHKC Series Hall current sensor

  霍尔传感器,适用于交流、直流、脉冲等复杂信号的隔离转换,通过霍尔效应原理使变换后的信号能够直接被AD 、DSP、PLC、二次仪表等各种采集装置直接采集和接受,体积小,寿命长,安装方便,响应时间快,电流测量范围宽精度高,过载能力强,线性好,抗干扰能力强等优点。

  Hall sensor is suitable for the isolation and conversion of complex signals such as AC, DC and pulse. Through the Hall effect principle, the converted signal can be directly collected and accepted by various acquisition devices such as ad, DSP, PLC and secondary instrument. It has the advantages of small volume, long service life, convenient installation, fast response time, wide current measurement range, high precision, strong overload capacity and good linearity, It has the advantages of strong anti-interference ability.

  3.型号说明Model description

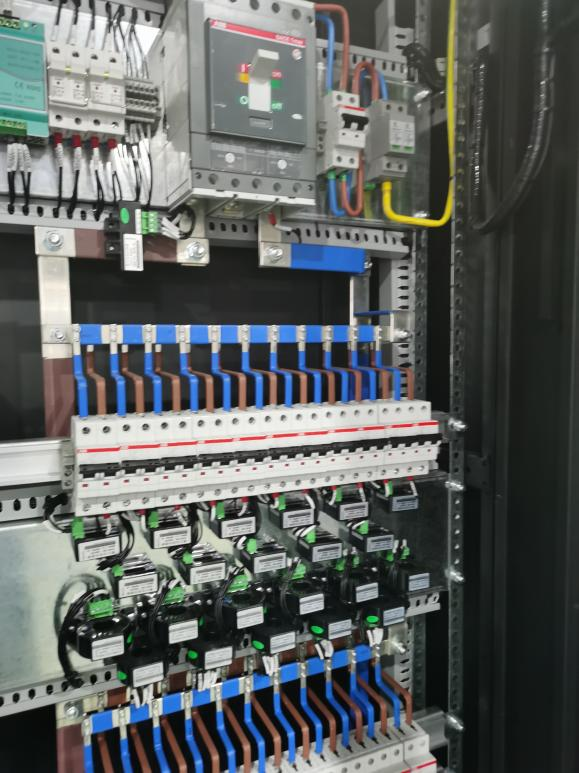

  4.安装图片Installation picture


  5.总结Summmary

  霍尔电流传感器能将系统中原边直流电流信号转换成为标准DC±5V或4-20mA输出,起到了监测和电气隔离作用,可与多回路监控仪表或其他电气测量仪表配套使用。被广泛用于工业自动化、不间断电源、充电桩等领域。

  The Hall current sensor can convert the primary DC current signal in the system into a standard DC±5V or 4-20mA output, which plays a role in monitoring and electrical isolation.It can be used with multi-loop monitoring instruments or other electrical measuring instruments. It is widely used in industrial automation, uninterruptible power supply, charging pile and other fields.
